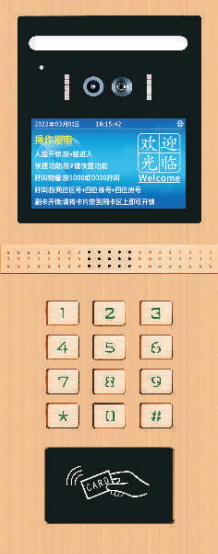

4.3″Inch Touch Button with Facial Recognition Outdoor Station
JDB-S76-1X9
- Multiple Unlocking Methods: Supports facial recognition, password, card, temporary passwords and indoor monitor for unlocking.
- Large Screen Display: Features an 4.3″ LCD Screen, Touch Button with facial recognition which has resolution of 480 × 272.
- Facial Recognition Capacity: Can store up to 100,000 faces and includes liveness detection for enhanced security.
- Versatile Installation: Can be wall-mounted or embedded.
- Comprehensive Functions: Offers video call, camera surveillance, elevator control, smart advertising playback, visitor messages and alarms.
- Standard TCP/TIP communication, supports connection to both local area networks and wide area networks.
- Appearance Dimension: 360*140*50mm
Installation Dimension: 345*130*40mm
| Unlocking | Facial Recognition, Password, Card, Indoor Monitor |
| Appearance Dimension | 360*140*50mm |
| Installation Dimension | 345*130*40mm |
| Installation Method | Wall-Mounted or Embedded |
| Material | Aluminum Alloy |
| Screen Display | 4.3″ Landscape LCD Screen |
| Screen Resolution | 480 × 272 |
| Camera | 2 Million Pixels |
| Operation System | Linux |
| Facial Recognition | 100,000 Face Capacity, Livness Detection |
| Card Capacity | < 10,000 |
| Power Consumption | < 5W |
| Working Voltage | DC18V, compatible with non-standard POE |
| Working Temperature | -35℃ – +60℃ |
| Working Humidity | 10% ~ 95% |
| CPU | 4-Core ARM Cortex A7 |
| Network Mode | TIP/TCP |
| SDRAM | 32-bit 1GB DDR3 |
| Flash | 8G eMMC |
| Video Compression Format | H.264, 1080P at 30 frames per second (fps) |
| Functions | Video call, Camera Surveillance, Elevator Control, Smart Advertising Playback, Elevator Calling |
| Visitor Message | Photo and Video |
| Alarm | Automatic Detection of Door Opening and Closing Status |
