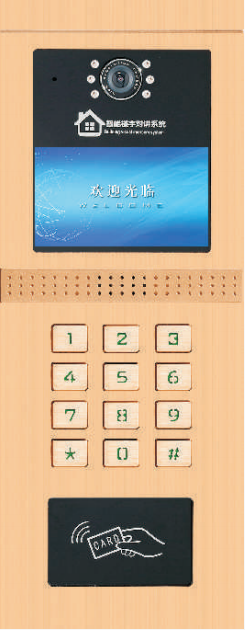

4.3″Inch Touch Button Digital Control Panel


JDB-S76-1X1

  • Multiple Unlocking Methods: Supports password, card, temporary passwords and indoor monitor for unlocking.
  • Large Screen Display: Features an 4.3″ LCD touch button with a resolution of 480×272.
  • Versatile Installation: Can be wall-mounted or embedded.
  • Comprehensive Functions: Offers video call, camera surveillance, elevator control, smart advertising playback, visitor messages and alarms.
  • Standard TCP/TIP communication, supports connection to both local area networks and wide area networks.
  • Appearance Dimension: 365*140*50mm
    Installation Dimension: 345*130*40mm





Description

UnlockingPassword, Card, Indoor Monitor
Appearance Dimension365*140*50mm
Installation Dimension345*130*40mm
Installation MethodWall-Mounted or Embedded
MaterialAluminum Alloy and Tempered Glass
Screen Display4.3″ Landscape Screen
Screen Resolution480×272
Camera2 Million Pixels
Operation SystemLinux
Card Capacity< 10,000
Power Consumption< 5W
Working VoltageDC15V~18V
Working Temperature-35℃ – +60℃
Working Humidity10% ~ 95%
CPUARM Cortex A7
Network ModeTIP/TCP
SDRAMDDR2 64M 667MHZ
FlashNOR 32M
Video Compression FormatH.264, 720P at 30 frames per second (fps)
FunctionsVideo call, Camera Surveillance, Elevator Control, Smart Advertising Playback, Elevator Calling
Visitor MessagePhoto and Video
AlarmAutomatic Detection of Door Opening and Closing Status
