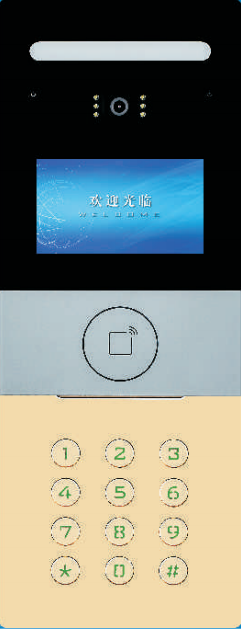

4.3″Inch Touch Button Analog Visual Outdoor Station


JDB-77-4

  • Multiple Unlocking Methods: Supports password, ID/IC card and indoor monitor for unlocking.
  • Large Screen Display: Features an 4.3″ TFT LCD Screen, Touch Button analog visual host which has resolution of 480 × 272.
  • Versatile Installation: Can be wall-mounted or embedded.
  • Comprehensive Functions: Offers video call, camera surveillance, elevator control, visitor alarms.
  • Standard TCP/TIP communication, supports connection to both local area networks and wide area networks.
  • Appearance Dimension: 365*140*50mm
    Installation Dimension: 348*130*40mm





Description

UnlockingPassword, ID/IC Card, Indoor Monitor
Appearance Dimension365*140*50mm
Installation Dimension348*130*40mm
Installation MethodWall-Mounted or Embedded
MaterialAluminum Alloy
Screen Display4.3″ Landscape TFT LCD Screen + touch button
Screen Resolution480 x 272
Camera 1/3″ CCD camera
Viewing Angle98-degree wide-angle
Minimum Illumination0 LUX
Card Capacity< 10,000
Working VoltageDC18V
Working Temperature-35℃ – +60℃
Working Humidity10% ~ 90%
Video OutputSimultaneous output of differential and CVBS signals
Frequency Response400～3400Hz ±3dB
FunctionsVideo call, Camera Surveillance, Elevator Control, Elevator Calling
AlarmAutomatic Detection of Door Opening and Closing Status
